Concrete panel 4 anchor holes | Konkrete4

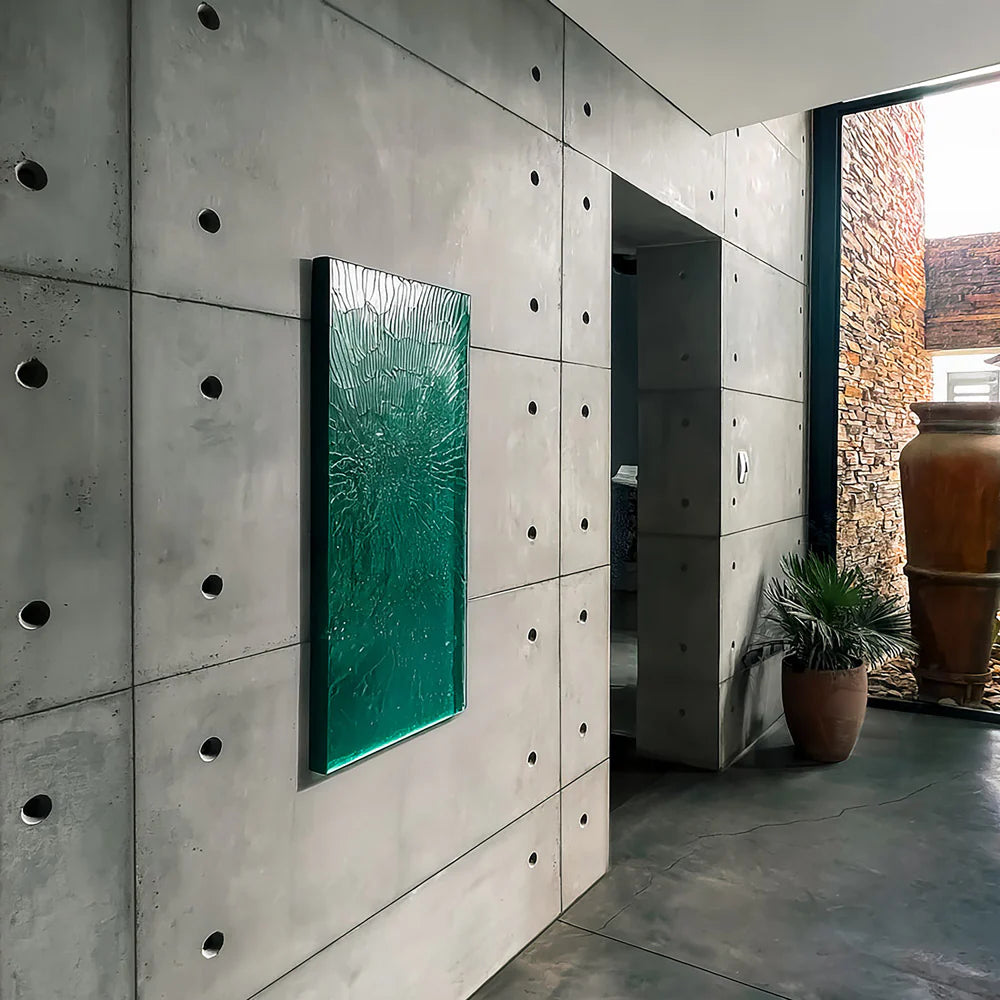

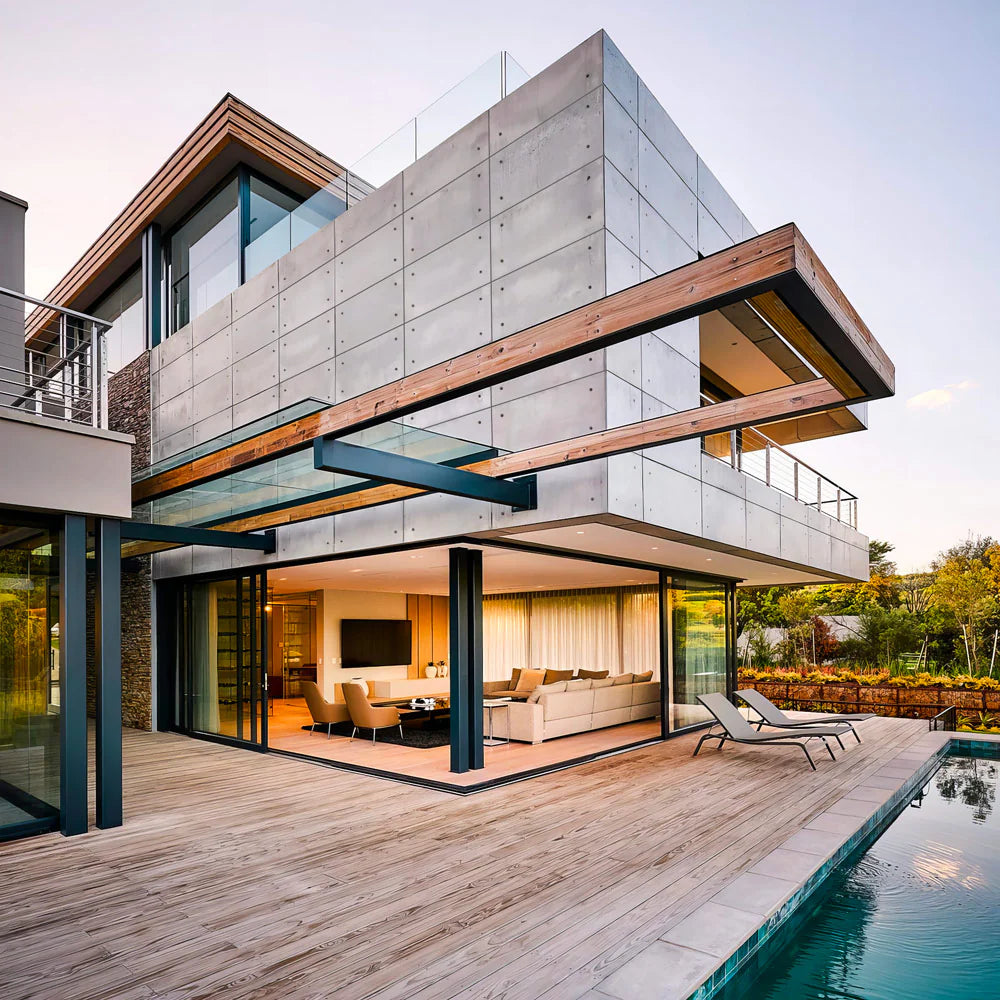

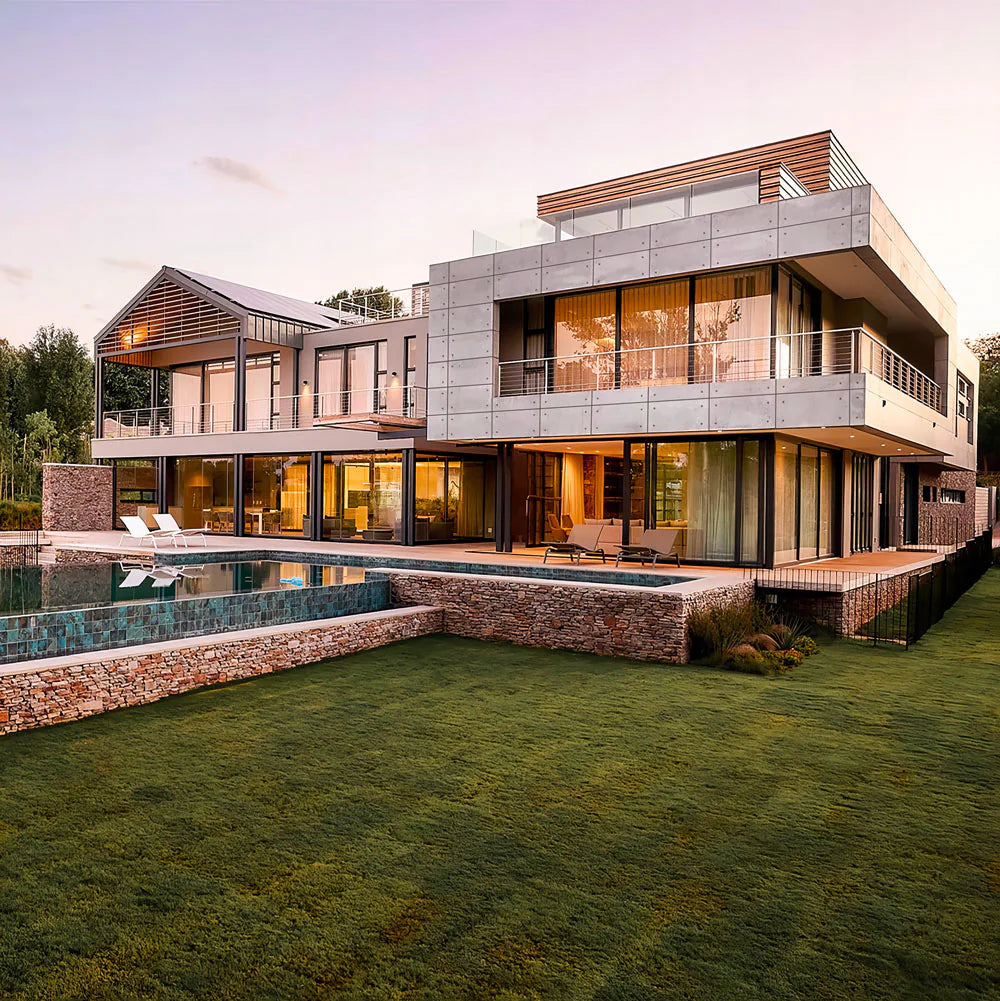

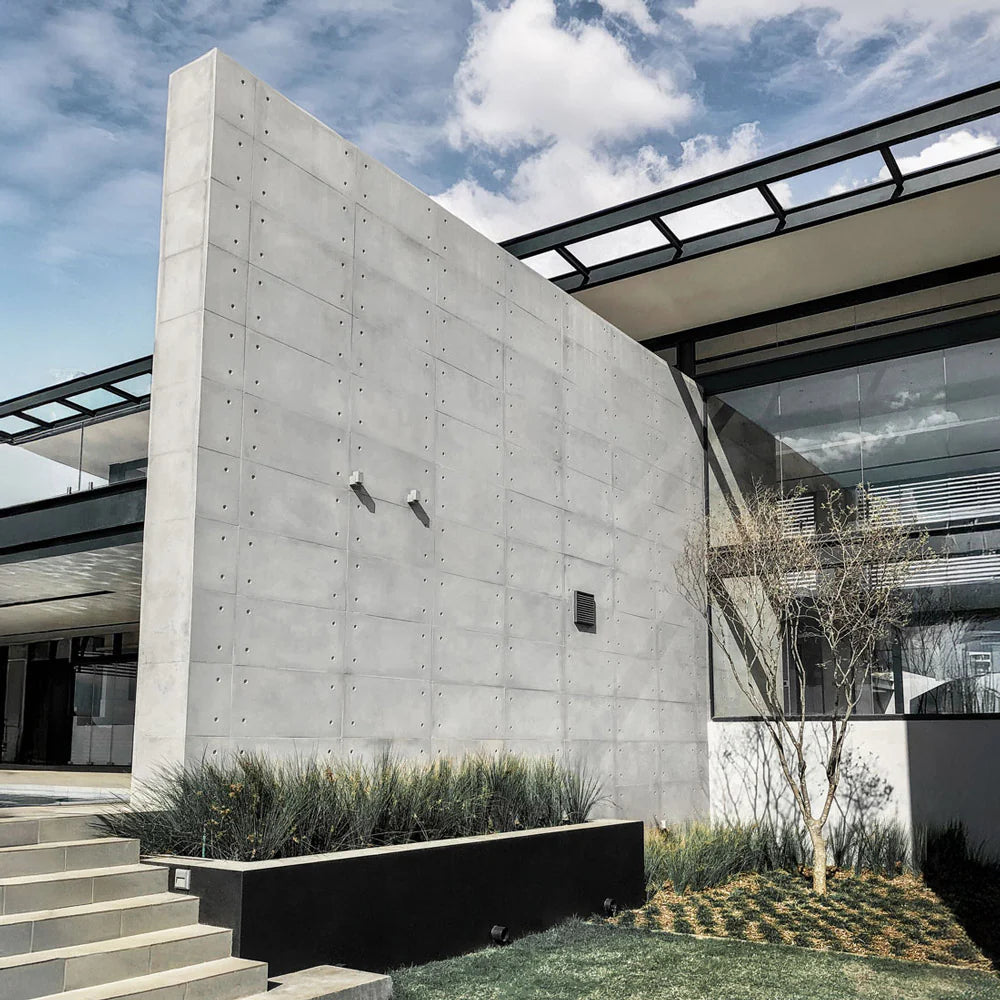

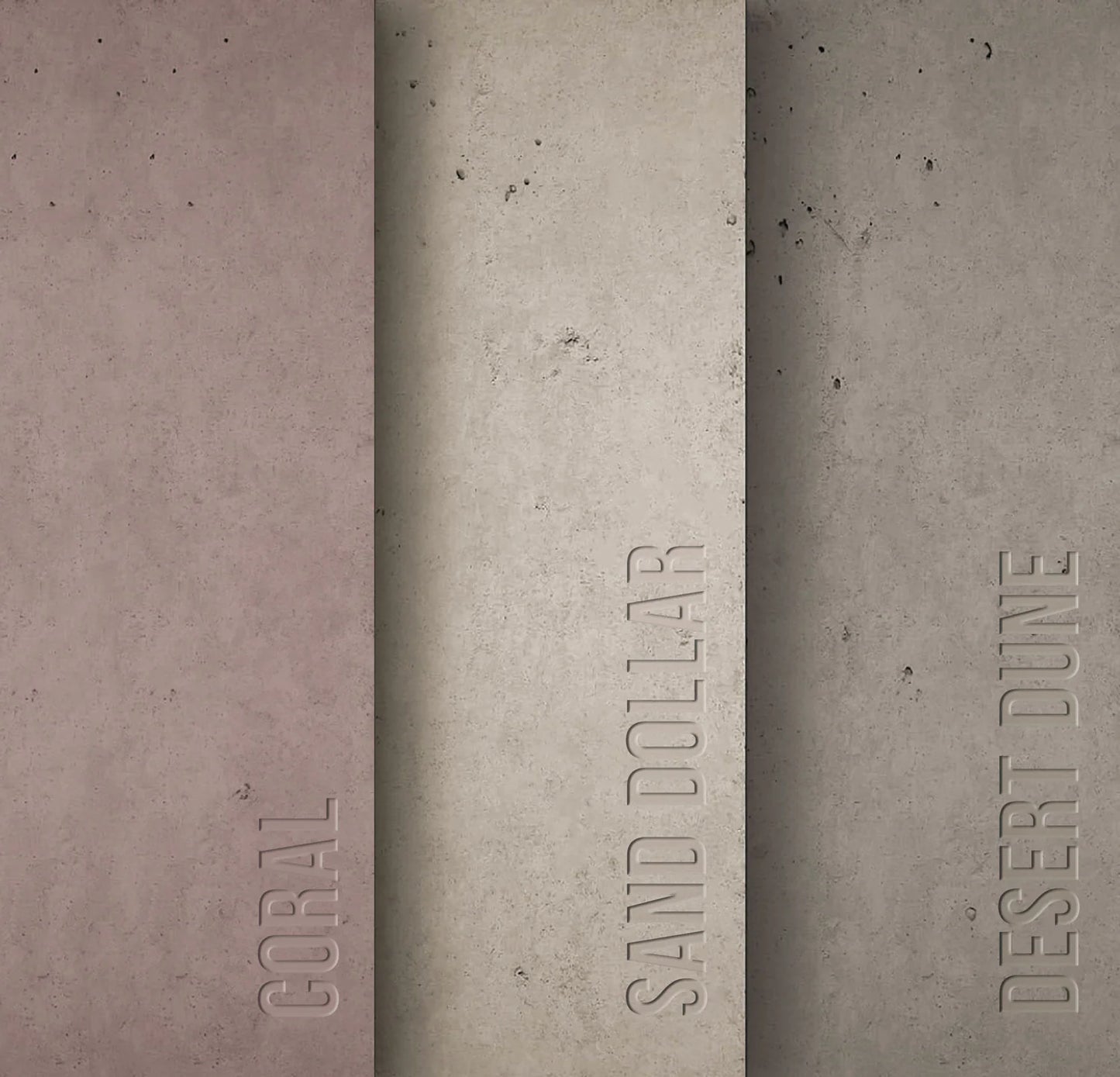

Konkrete4 is a 1200×600mm lightweight UHPC concrete wall panel featuring four precision anchor holes for secure mechanical fixing if needed. At only 13mm thick, these panels combine exceptional strength with easy installation. The cementitious surface texture and organic tonal variation make them ideal for both interior feature walls and exterior architectural cladding where strength and style are equally important.

Technical Specifications

Dimensions: 1200x600mm (47 1/4" x 23 5/8")

Thickness: 13mm (0.5")

Weight: 9.8kg per panel (21.6 lbs) // 13.6kg/m² (2.8lbs/ft²)

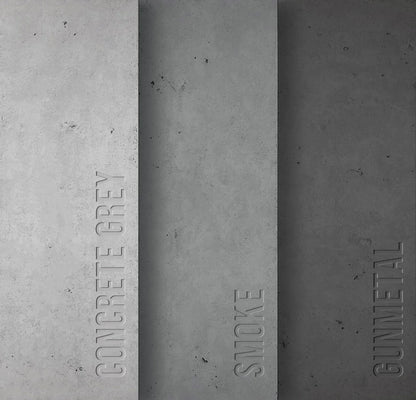

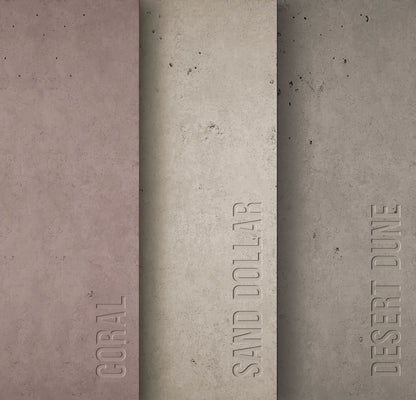

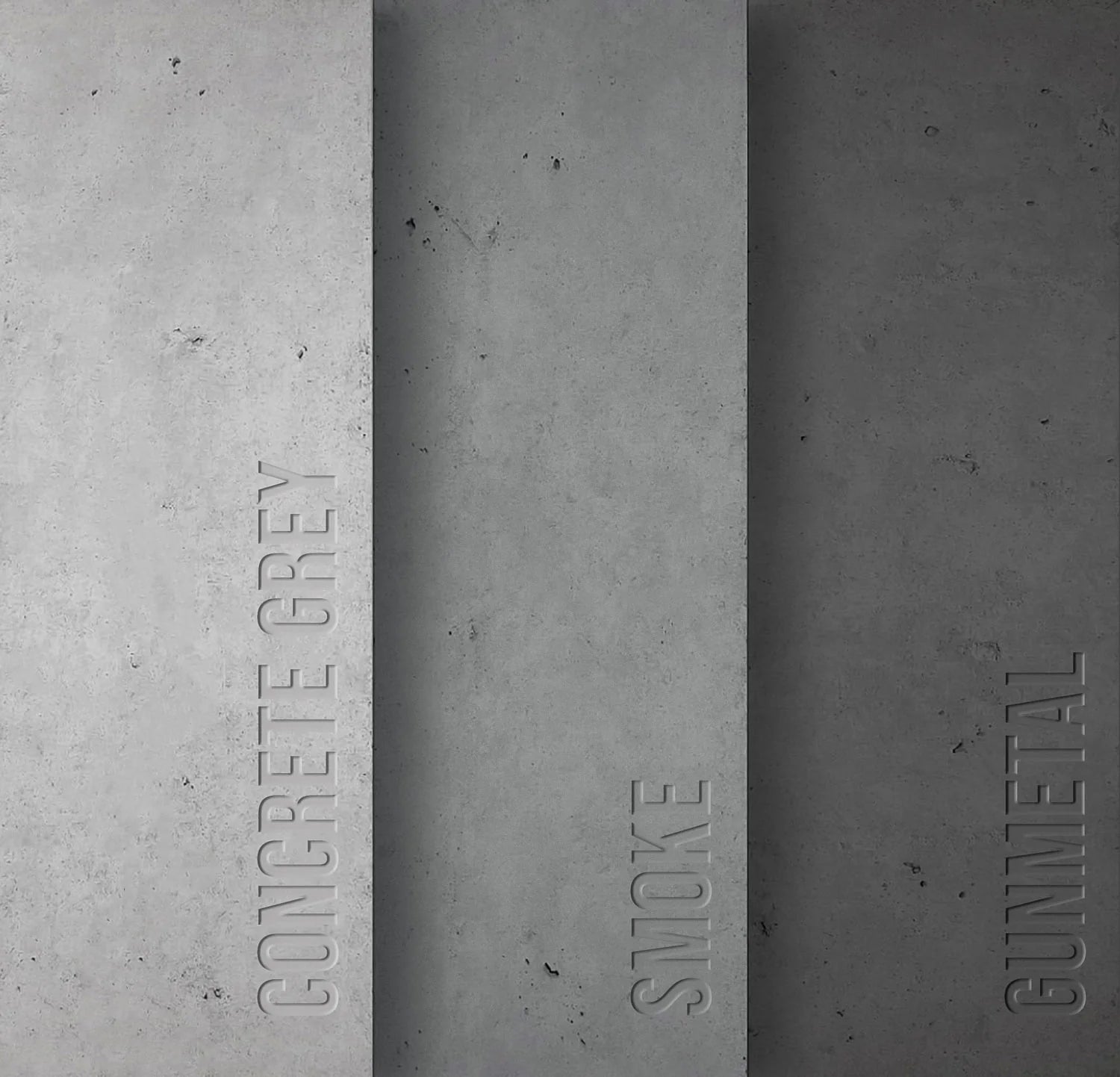

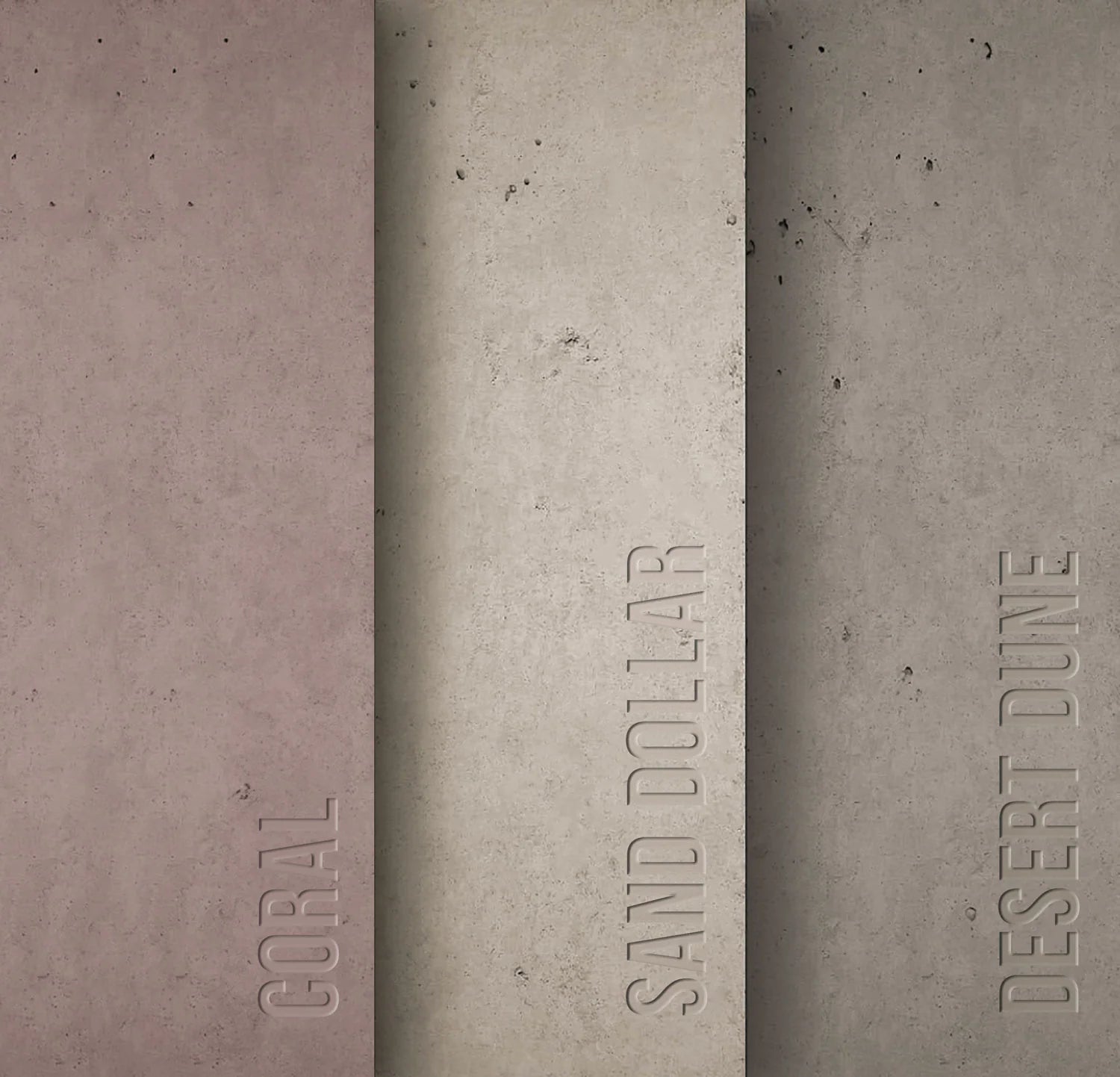

Finish: Natural or Smooth

Anchor holes: 4

Compressive strength: 6600 psi – 7900 psi // 45–55 MPa

Flexural strength: 2,400 psi - 3,100 psi // 17-21 MPa

Impact Resistance: High / Class I

Density: 1,190 kg/m³ (74.3 lb/ft³)

Thermal expansion: 9.7 to 10.4 × 10-⁶ /°C // 5.4 to 5.8 × 10-⁶ in/in/°F

Thermal Insulation(R-value of panel): 0.110 m²·K/W // 0.626 ft²·°F·hr/BTU

Fire Classification: Non-combustible

Water Absorption (sealed): <1%

Available on Order - Price per SQM - Custom orders ship in 14-18 weeks - Minimum Quantity applies
