Diamond shaped 3D tiles | VECTOR

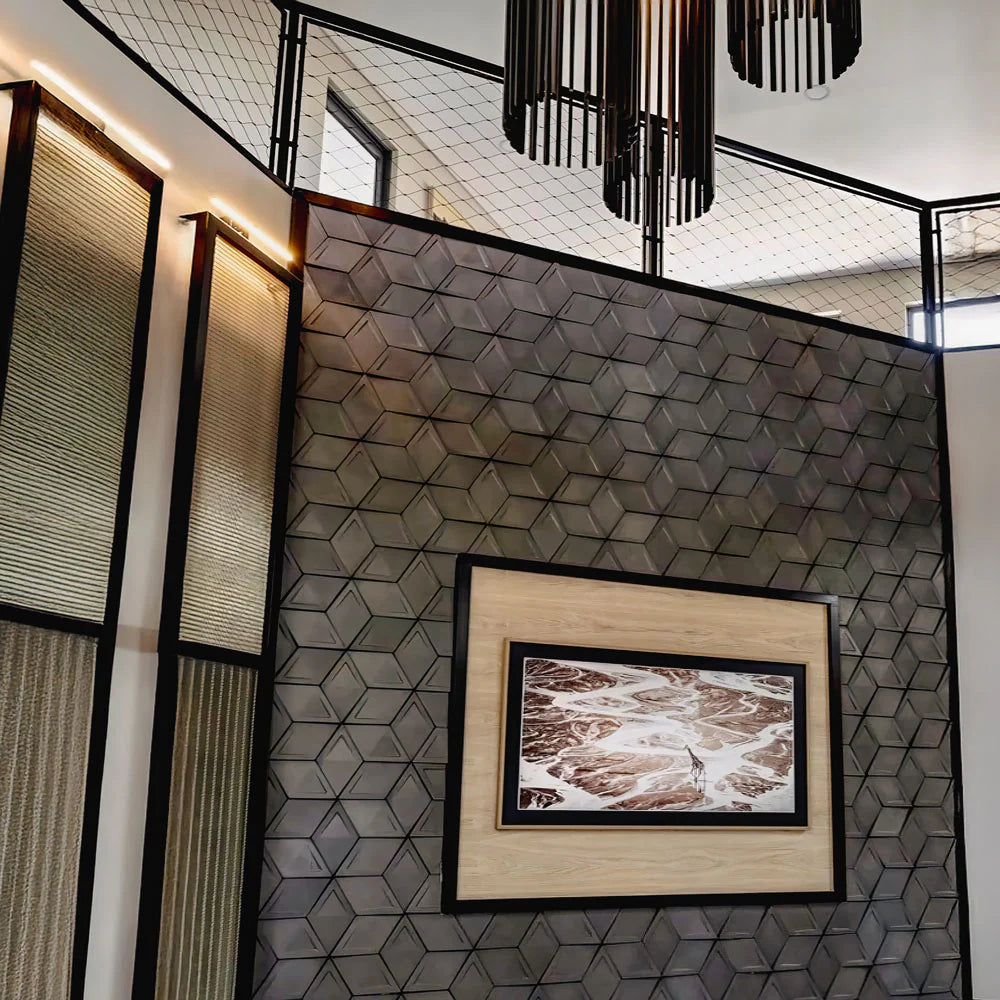

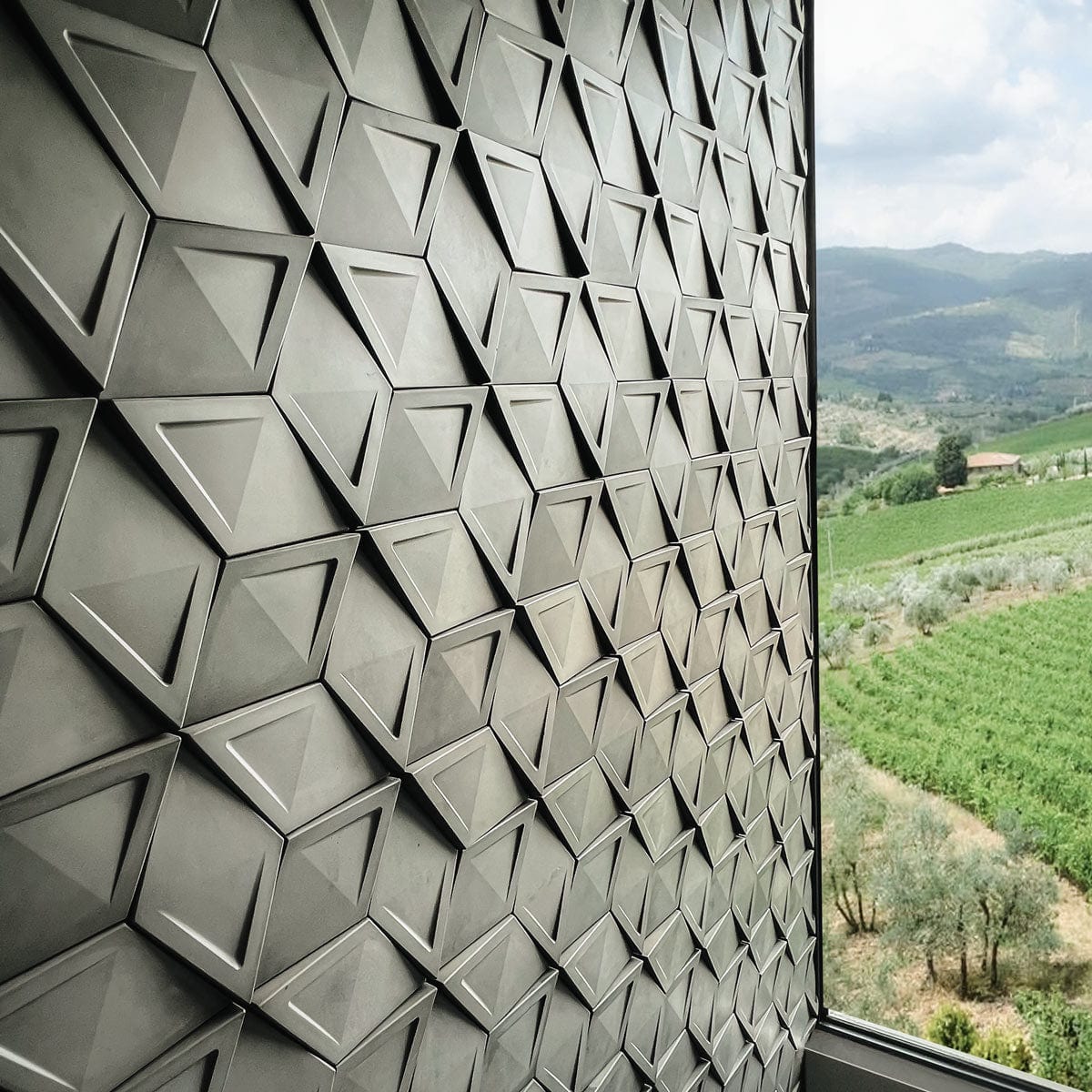

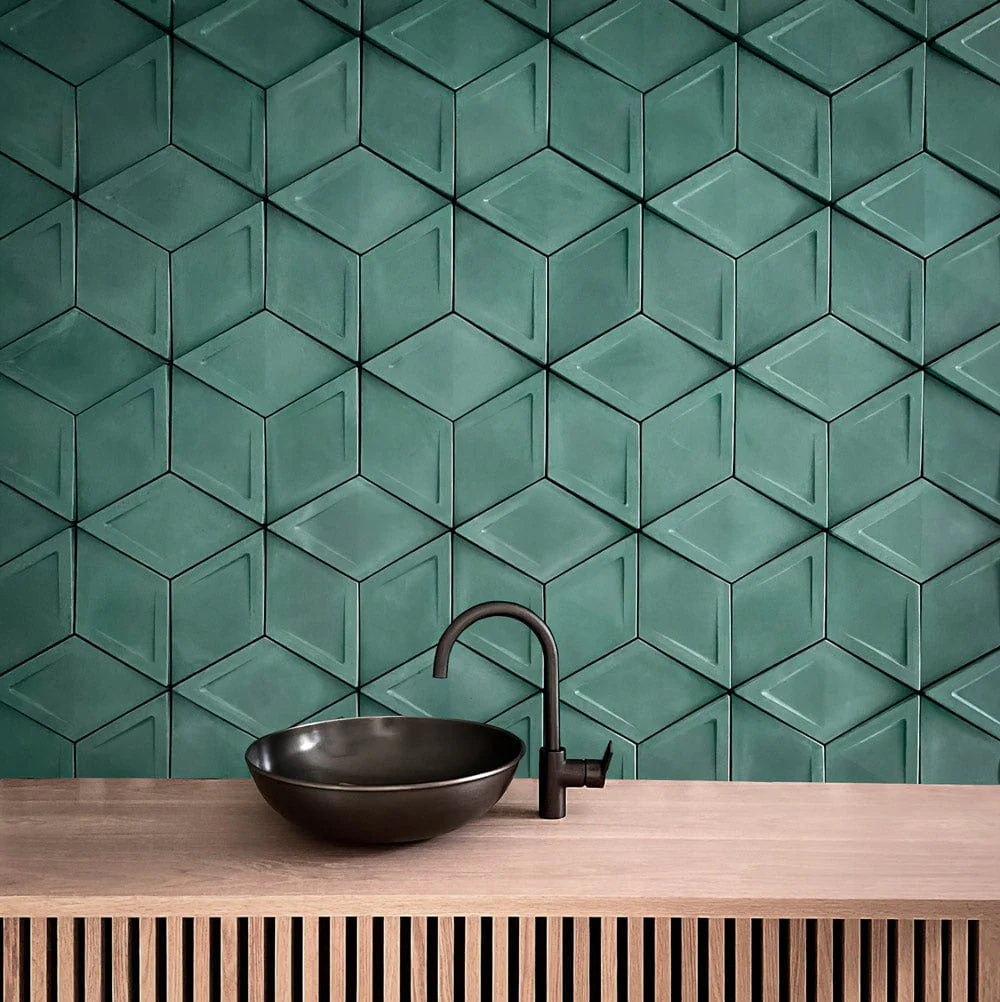

Designed with bold geometry in mind, these 3D tiles uses a slanted diamond profile interrupted by a centered level triangle. This contrast between shape and void creates a concrete skin that reacts beautifully to both natural and artificial light.

TECHNICAL SPECIFICATIONS

Dimensions: L 307mm x W 180mm  // 12.09" × 7.09"

Thickness: 12mm – 30mm  // 0.47" – 1.18"

Weight/tile: 510g // 1.12 lbs

Weight/m²: 17,9kg  // 3.67 lbs/ft²

Area: 35 tiles in a m²  // 3.25 tiles / ft²

Compressive strength: 11,600 psi – 13,500 psi // 80–93 MPa

Flexural strength: 2,800 psi – 3,300 psi // 19–23 MPa

Impact Resistance: High / Class I

Density: 1,400–1,500 kg/m³ // 87.4–93.6 lb/ft³

Thermal expansion: 9.6 to 10.3 × 10⁻⁶ /°C // 5.3 to 5.7 × 10⁻⁶ in/in/°F

Thermal Insulation (R-value of tile): ~0.085 m²·K/W // 0.484 ft²·°F·hr/BTU

Fire Classification: Non-combustible

Water Absorption (sealed): <1%

Available on Order - Price per SQM - Custom orders ship in 14-18 weeks - Minimum Quantity applies
