Slanted 3D wall tile | ANGLE

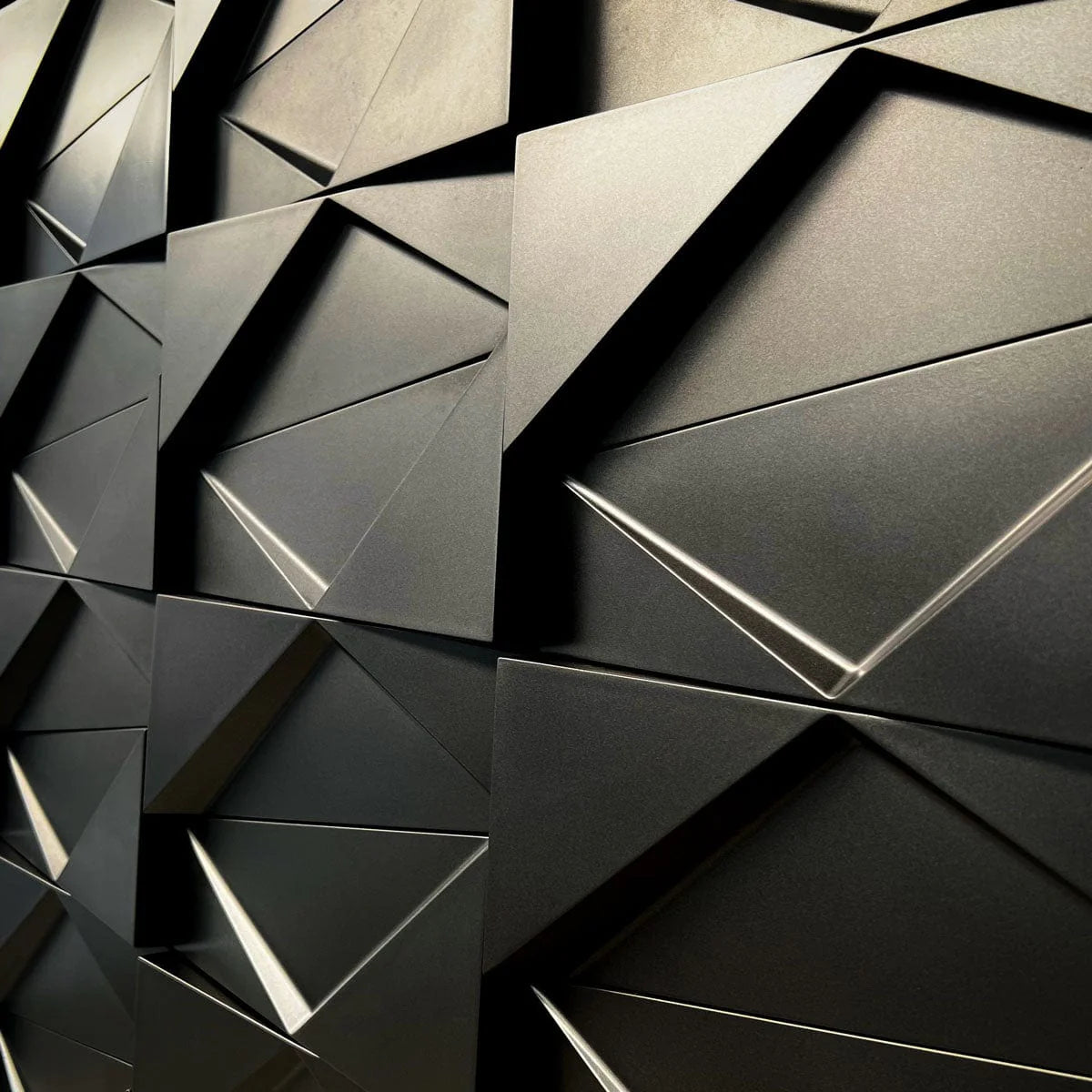

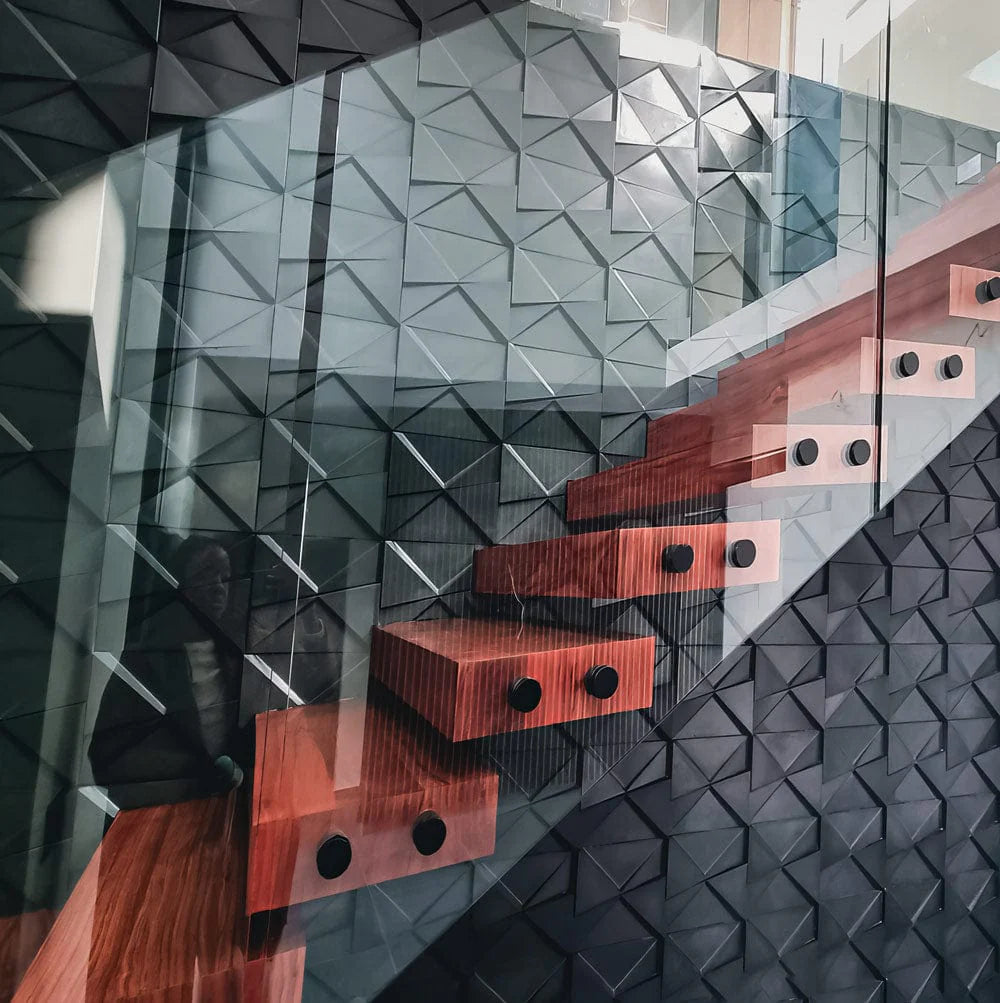

ANGLE slanted 3D wall tile sharpens a surface with clean linear geometry. Each lightweight concrete tile shifts forward, catching light at bold angles. When multiplied, they form directional wallscapes with a strong architectural presence.

TECHNICAL SPECIFICATIONS

Dimensions: L 357mm x W 181mm  // 14.06" × 7.13"

Thickness: 12mm – 34mm  // 0.47" – 1.34"

Weight/tile: 1210g // 2.67 lbs

Weight/m²: 23,6kg  // 4.83 lbs/ft²

Area: 19.5 tiles in a m²  // 1.81 tiles / ft²

Compressive strength: 11,600 psi – 13,500 psi // 80–93 MPa

Flexural strength: 2,800 psi – 3,300 psi // 19–23 MPa

Impact Resistance: High / Class I

Density: 1,400–1,500 kg/m³ // 87.4–93.6 lb/ft³

Thermal expansion: 9.6 to 10.3 × 10⁻⁶ /°C // 5.3 to 5.7 × 10⁻⁶ in/in/°F

Thermal Insulation (R-value of tile): ~0.085 m²·K/W // 0.484 ft²·°F·hr/BTU

Fire Classification: Non-combustible

Water Absorption (sealed): <1%

Available on Order - Price per SQM - Custom orders ship in 14-18 weeks - Minimum Quantity applies
